Packaging Insert Cavity Design: How to Get the Perfect Fit
Snug fit or loose fit? Deep cavity or shallow? Learn how insert cavity design protects your product and elevates unboxing. Chengtop Packaging’s cavity design guide.
- Understand cavity fit: snug vs loose
- Know cavity depth rules by product type
- Learn about clearance and tolerance
- See cavity design mistakes to avoid
- Understand how cavity affects unboxing
- Get the perfect fit for your product
Demander un devis
Indiquez la quantité souhaitée et ajoutez-la à votre liste de devis pour obtenir un devis.
Description
A Bad Fit = Damaged Product
Your product rattles around inside the box. It shifts in transit. Customers pull it out and it’s scratched. The cavity — the hole that holds your product — is the most important part of the insert.

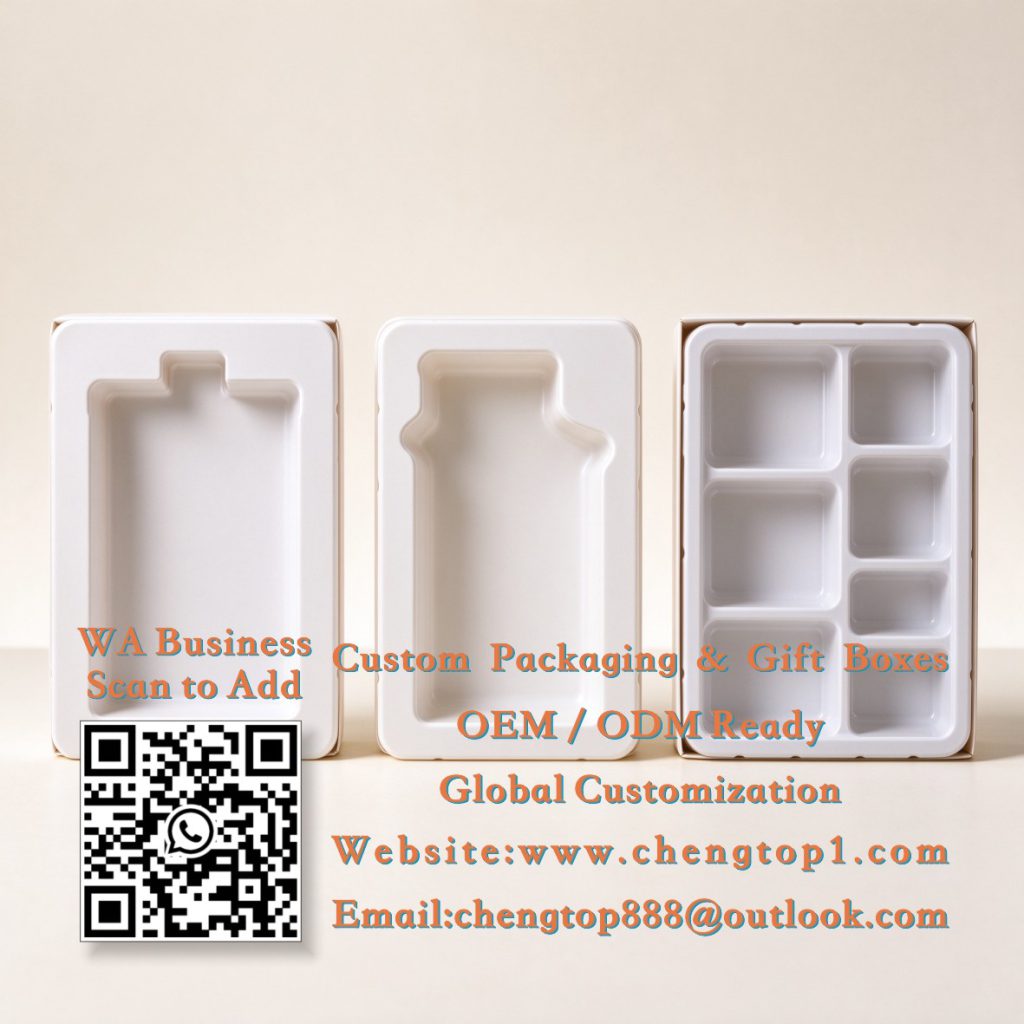

Cavity Fit Types
|
Fit Type
|
Clearance
|
Ressentir
|
Idéal pour
|
|
Snug fit
|
0.5–1mm gap
|
Product holds tight, premium feel
|
Luxury products, fragile items
|
|
Standard fit
|
1–2mm gap
|
Easy to insert and remove
|
Most products
|
|
Loose fit
|
2–3mm+ gap
|
Easy loading, product can shift
|
Low-cost, durable products
|
Rule: Snug = premium. Loose = cheap. But too snug = product gets stuck.
Cavity Depth
|
Type de produit
|
Recommended Depth
|
|
Bottles/jars
|
70–80% of product height
|
|
Flat items (cards, boxes)
|
2–3mm deep
|
|
Rounded items (jewelry)
|
50–60% of height
|
|
Fragile glass
|
80% of height, full support
|
Why depth matters:
- Too shallow = product falls out
- Too deep = hard to grab, looks buried
- Just right = product sits proud, easy to lift
Clearance & Tolerance
What clearance (gap) should the cavity have?
|
Insert Material
|
Recommended Clearance
|
|
mousse EVA
|
0.5–1mm
|
|
Velvet-covered board
|
0.5–1mm
|
|
Cardboard
|
1–2mm
|
|
Pâte moulée
|
1–2mm
|
|
Plastic thermoform
|
0.5mm
|
Note: Products vary in size (especially glass bottles). Add a little extra clearance for consistency.
Cavity Design Mistakes
- No clearance at all — Product doesn’t fit in every unit
- Too much clearance — Product rattles and shifts
- Wrong depth — Product falls out or gets stuck
- Sharp corners in cavity — Damages product edges
- No lead-in chamfer — Hard to insert product
- Ignoring product taper — Bottles are wider at top, cavity should match
- No access finger hole — Hard to lift product out
The “Finger Hole” Trick
Add a small thumb cutout at the edge of the cavity:
- Customers can lift product out easily
- Looks intentional and premium
- Works for bottles, boxes, jars
- Free to add to any cavity design
Multi-Compartment Cavities
When you have multiple products:
- Arrange by priority (hero product front and center)
- Leave breathing room between items
- Don’t overcrowd — empty space looks clean
- Match compartment size to product (not all equal)
How We Design Your Cavity
- You send product dimensions (or actual product)
- We create a 3D cavity design based on your product
- We produce a sample insert for you to test fit
- You test: product fits? Easy to remove?
- We adjust if needed
- Bulk production after approval
Important: Send us your actual product or exact dimensions. Guessing = wrong cavity = wasted money.
Common Cavity Questions
Q: My product has a unique shape. Can you make it?
A: Yes. We custom die-cut any shape from EVA, velvet board or cardboard.
Q: How much does custom cavity cost?
A: Standard die-cut cavities are included. Fully custom 3D cavities (thermoform) have a mold fee.
Q: Can I change cavity design later?
A: Yes, but it requires new tooling. Better to get it right first time.
Need the Perfect Fit?
Send us your product dimensions — we’ll design a cavity that protects and impresses.
